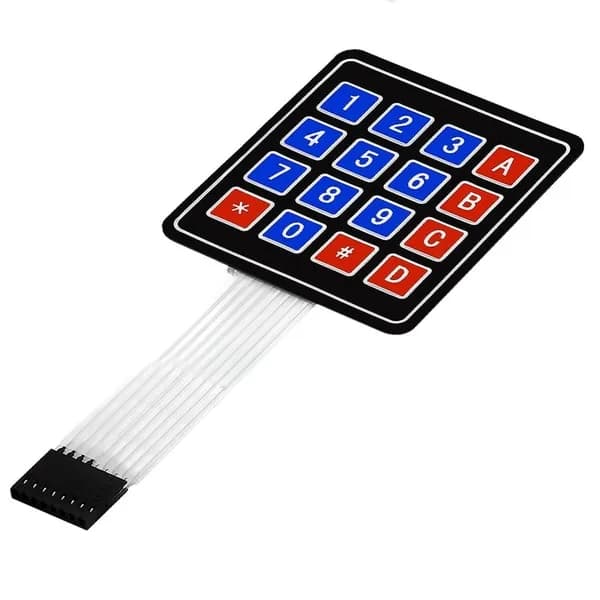

Membrane Switch Keypad 4x4
Price on request
Add it to your enquiry and our team will send you a quote.
Available to order
Description
4x4 matrix keyboard: Contact resistance: 500 Insulation resistance:100M Key Operating Force 150-200N Life of 100 million (times) Circuit Rating: 35V (DC), 100mA, 1W Contact Resistance: 10 ~ 500 Insulation Resistance: 100M 100V Dielectric Strength: 250VRms (50 ~ 60Hz 1min) Electric Shock jitter: <5ms Life Span: tactile type: one million times Operating Pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz) Switch Travel: touch-type: 0.6 ~ 1.5mm Operating temperature: -40 to +80 Storage temperature: -40 to +80 Temperature: from 40,90% to 95%, 240 hours Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)
