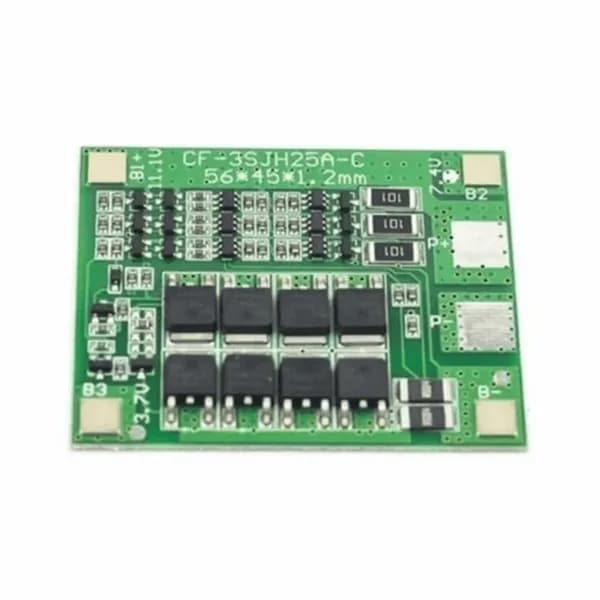

3S 25A 18650 Lithium Battery Protection Board
Price on request
Add it to your enquiry and our team will send you a quote.
Available to order
Description
Model: HX-3S-FL25A-A Size: about 56mm*45mm*4mm Over voltage range: 4.25~4.35V ± 0.05V Over discharge voltage range: 2.3~3.0V ± 0.05V Maximum operating current: 0~25A Maximum transient current: 34~40A Quiescent current: less than 30uA Internal resistance: less than 100Mohm Working temperature: -40℃ ~ +50℃ Storage condition: -40℃ ~ +80℃ Effective life: more than30000h Short circuit protection: Yes, delayed self recovery
